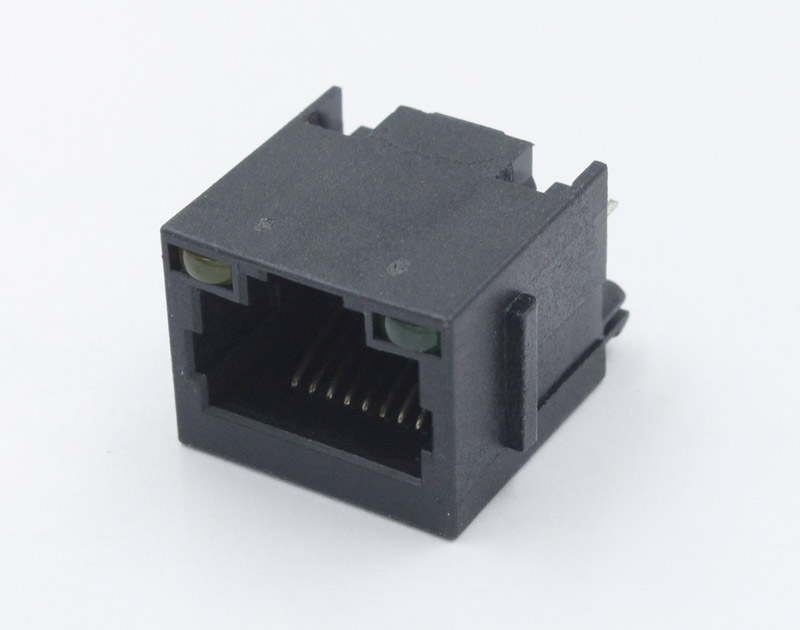

全塑带LED灯带边直立式8P8CRJ45母座产品参数：

1,额定电流:1.5AMPS

2,额定电压:125VAC

3,绝缘电阻:＞500MΩ

4,耐压强度:AC 1000V 50HZ或60HZ 1分钟

5,接触电阻:＜20MΩ

6.环境温度：-40~+80℃

7.导电体材质：磷青铜镀金

8.产品认证：UL/ROHS

全塑带LED灯带边直立式8P8CRJ45母座机械性能:

1,插入力:2条金丝=350g /4条金丝=500g/ 6条金丝=750g/ 8条金丝=900g /10条金丝=1050g

2,配合强度:插头和插座之间7.7Kg

3,使用寿命:＞750次插拔

全塑带LED灯带边直立式8P8CRJ45母座材料：

1,外壳材料：PBT/LCP/PA66/PA46/NL9T

2,外壳颜色：黑色或其它

3,触点材料：磷青铜

4,电镀：镀金过NICKEL.GOLD电镀，厚度1.5U“/3U”/6U“/15U”/30U“/50U”

5,保护层：0.2厚黄铜镀镍

SPECIFICATIONS

MATERIAL

1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON

2. HOUSING COLOR : BLACK OR OTHERS

3. CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm

4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATING

THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"

5. SHIELD : 0.20 THICKNESS BRASS WITH NICKEL PLATED

ELECTRICAL

1. VOLTAGE RATING: 125 VAC RMS.

2. CURRENT RATING: 1.0 AMP

3. CONTACT RESISTANCE: 30 MILLIOHMS MAX.

4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC

5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTE

MECHANICAL

1. DURABILITY : 750 CYCLES MIN

2. PCB RETENTION PRE-SOLDER: 1 LB MIN

ENVIRONMENTAL

1. STORAGE :-40℃~80℃

2. OPERATION: 0℃~70℃
